Laser Shearography Systems for Advanced Composite Testing
ACS supplies and supports isi-sys laser shearography systems in Australia, helping manufacturers and asset owners detect hidden defects in composite structures, including delamination, disbonding and impact damage, without contact or damage to the part.
/ Where isi-sys laser shearography units have successfully been deployed
Sector experience that matters
Aerospace Heat Shield Inspection
Marine and Hull Structures
Wind Turbine Blade Inspection

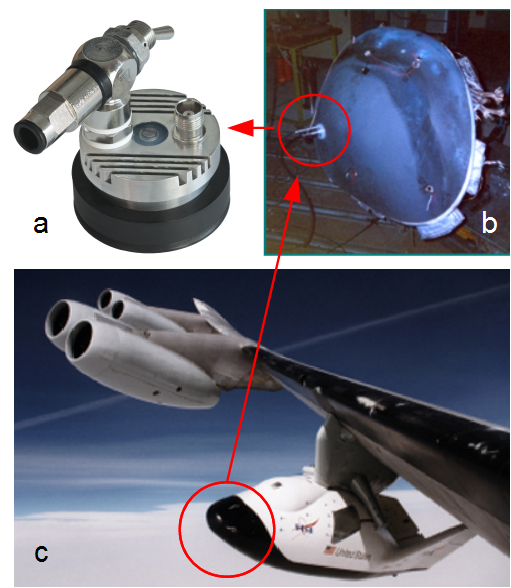

Historic isi-sys shearography deployment on the X-38 spacecraft heat shield, using dynamic excitation to inspect C-Si-C composite structure. Local vibration response revealed defect indications in the nose hood area, demonstrating shearography’s value for high-performance aerospace composites.

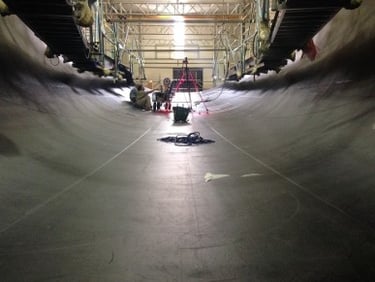

Dynamic shearography inspection of a 30.5 m carbon fibre / NOMEX honeycomb yacht hull. The full-field method covered the complete hull in 240 shots over three workdays and detected bonding defects confirmed by core sampling

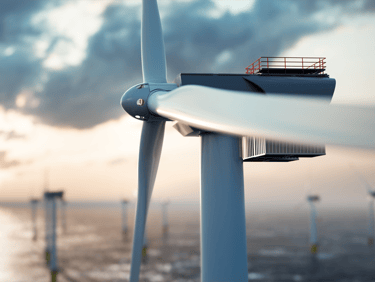

Dynamic shearography inspection of a wind turbine blade section with foam blocks and resin bridges. Vibration excitation revealed debonding behaviour and resin bridge defects across selected frequencies, demonstrating full-field defect detection in GFRP sandwich structures.
We design the test, not just supply the system
APPLICATION AND CONFIGURATION
DEPLOYMENT AND TRAINING
The equipment is only half the answer
Practical deployment, not shelfware
Shearography performance depends on the component, defect type and loading method. ACS helps assess the application, select the right system configuration and demonstrate whether the expected defect response can be reliably detected.
ACS supports feasibility testing, reference samples, inspection protocols, operator training and commissioning. The goal is simple: a system your team can use confidently, repeatably and defensibly.
Bring your application. We will assess it.
Whether you need feasibility testing, a system demonstration or guidance on inspection workflow, ACS responds as a technical partner, not a sales channel.

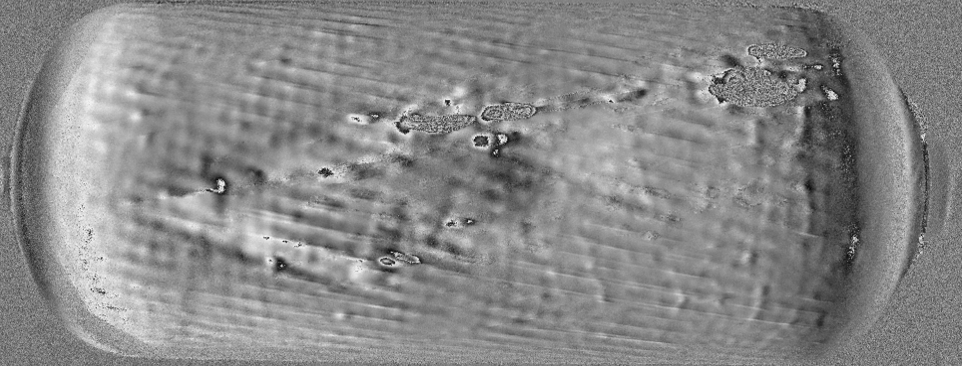

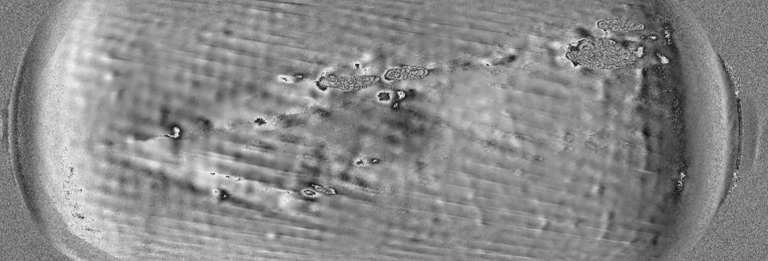

Results of a carbon fibre cylinder, loaded internally by pressurising.
